The HSP2000 range of M16x2 hydraulic test points provides a connection for compatible pressure test probes and test kits. Designed for installation in hydraulic systems such as valve and manifold blocks, these test point fittings support pressure checks during servicing and fault-finding.
Available installation thread options include BSPP, BSPT, NPT, metric and UNF. The table below lists selected BSPP variants; consult the catalogue or contact HSP for other configurations and compatibility information.
Send your required installation thread, existing test equipment details and operating conditions when requesting a hydraulic test-point quotation. You can also compare Hydra-Test HSP219 test points or browse our hydraulic components.

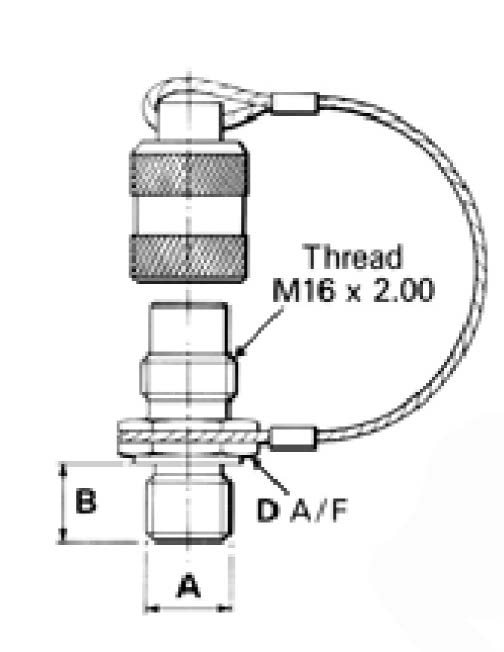

| Thread | Height (mm) | D (mm) | B (mm) | Weight (kg) | Part Number |
|---|---|---|---|---|---|
| 1/8” BSPP | 48.40 | 17.00 | 10.00 | 0.06 | HSP2000-A |
| 1/4” BSPP | 52.00 | 19.00 | 12.70 | 0.07 | HSP2000-B |
| 3/8” BSPP | 52.50 | 22.00 | 12.70 | 0.08 | HSP2000-C |
Tell us what you need and our engineering team will come back to you.
