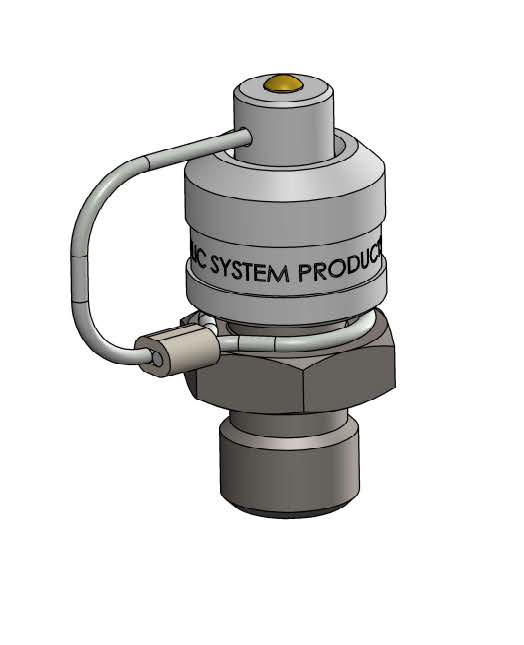

The HSP219 is a steel hydraulic test point with a hard seat and a 1/4-inch BSPP external thread. Designed for HSP Hydra-Test probes and test kits, it provides a diagnostic connection for pressure checks during hydraulic servicing and fault-finding.
The specification lists a maximum working pressure of 420 bar and hydraulic oil as the operating medium. Review the technical table and safety datasheet for the complete product requirements, or contact HSP to discuss your installation.
When requesting a quotation, include your installation port thread, existing probe or test-kit details, operating conditions and required quantity. For other diagnostic connection options, compare our M16x2 hydraulic test points and Hydra-Test HSP852.
| Parameter | Specification |
|---|---|
| Assembly Group | Test Point |
| External Thread Size | 1/4″ BSPP |
| Seat Type | Hard Seat |
| Medium | Hydraulic Oil |
| Weight | 0.08 kg |
| Material | Steel |
| Max Working Pressure | 420 bar |
| Max Torque | 31–37 N·m |
| Working Temperature Range | -30°C to 110°C |
Tell us what you need and our engineering team will come back to you.
