Shuttle valves accept the flow and pressure from two different sources and direct the highest pressure to a single outlet port. Shuttle valves are typically used in Load Sensing circuits as well as Brake circuits. Stainless steel and alternative seal options available.

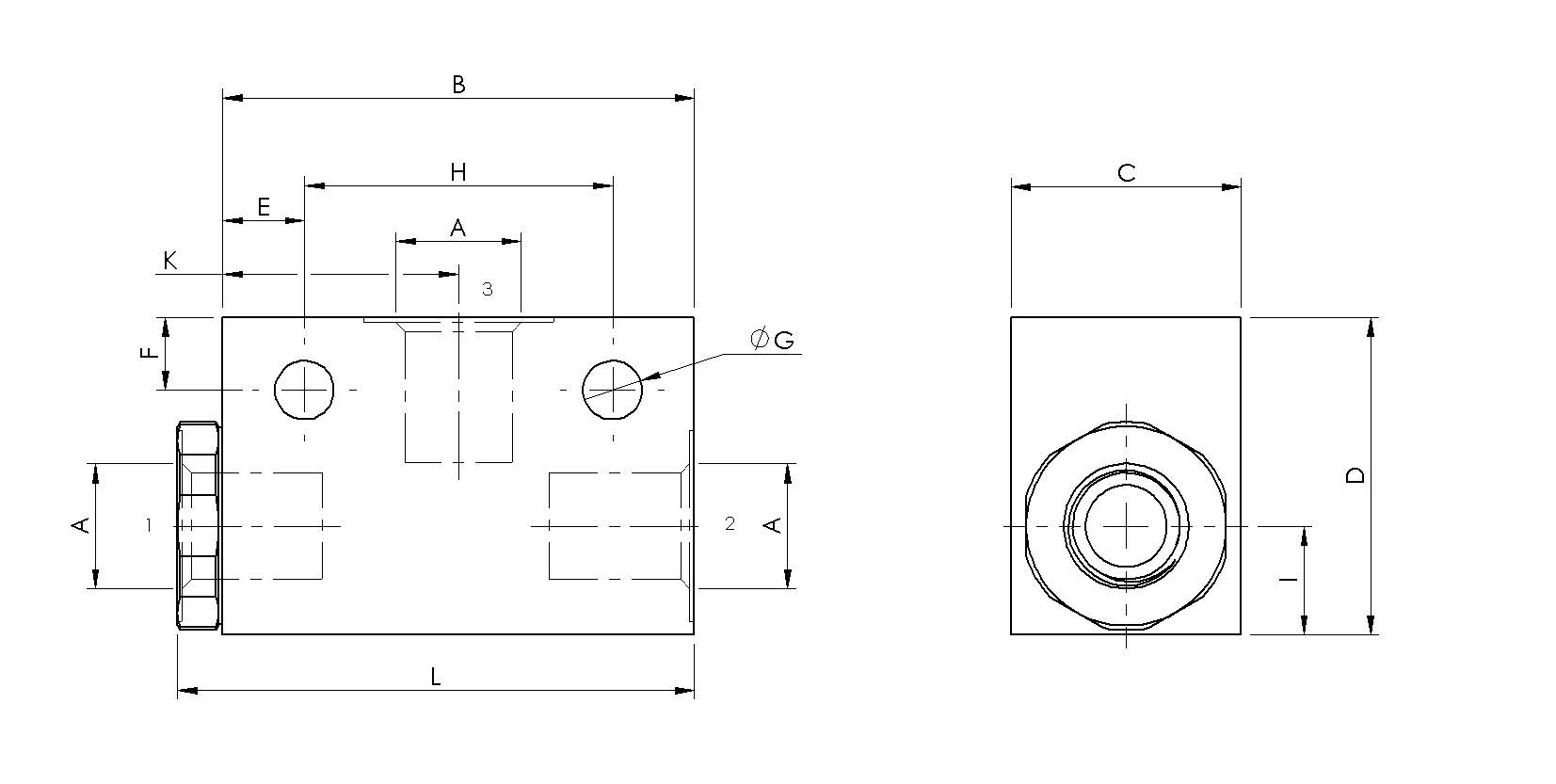

| Thread | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | L (mm) | K (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4” BSPP | 52 | 25.40 | 35 | 9 | 8 | 6.50 | 34 | 12 | 57 | 26 | |
| 3/8” BSPP | 60 | 25.40 | 40 | 8 | 8 | 6.50 | 44 | 13.50 | 69 | 30 | |
| 1/2″ BSPP | 65 | 38.10 | 50 | 10 | 10 | 8.50 | 45 | 18 | 73.80 | 32.50 | |
| 3/4” BSPP | 90 | 40 | 60 | 17.50 | 12 | 8.50 | 55 | 21 | 98 | 43 | |
| 1” BSPP | 110 | 50.80 | 70 | 25 | 12 | 10.50 | 60 | 26.25 | 120 | 51 |
| Thread | Max Flow (L/min) | Max Pressure (bar) | Weight (kg) | Part Number |
|---|---|---|---|---|
| 1/4” BSPP | 20 | 420 | 0.30 | HSP1499-2 |
| 3/8” BSPP | 40 | 420 | 0.39 | HSP1499-3 |
| 1/2″ BSPP | 60 | 420 | 0.80 | HSP1499-4 |
| 3/4” BSPP | 110 | 350 | 1.30 | HSP1499-6 |
| 1” BSPP | 150 | 215 | 2.40 | HSP1499-8 |
