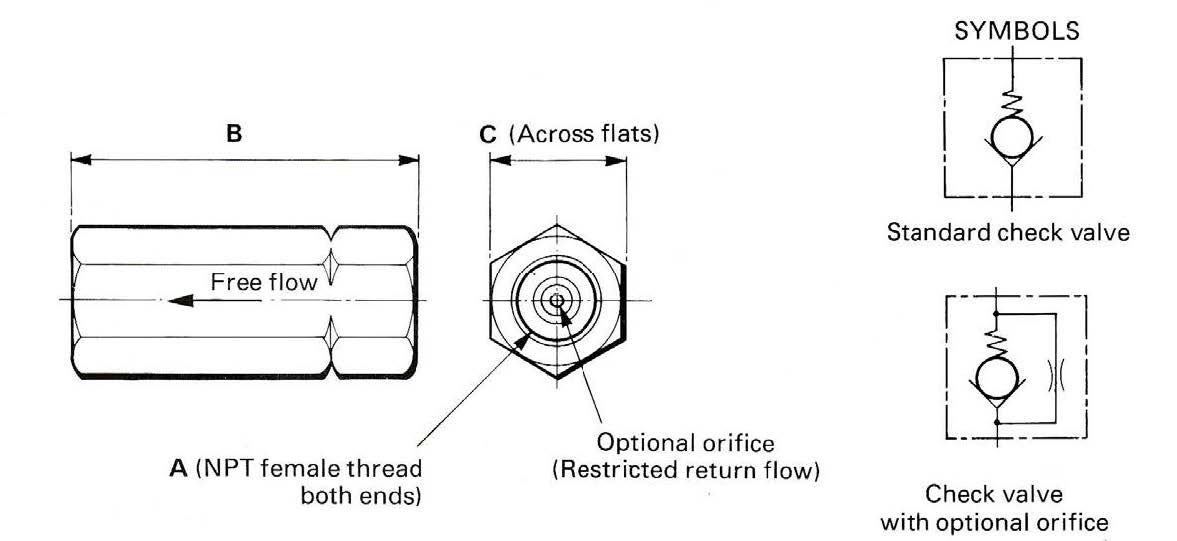

The In-line NPT Check Valve hydraulically locks a flow path by preventing return flow. The spring-loaded poppet opens to allow free flow in one direction and reseats once flow stops, holding the load. An optional orifice can be specified where a restricted return flow is required.
This NPT threaded version is rated to a working pressure of 760 bar and is available with cracking pressures of 0.35, 1.00, 2.00 or 4.50 bar to suit your system.
| Maximum Working Pressure | 760 bar |
|---|---|
| Cracking Pressure Options | 0.35, 1.00, 2.00, 4.50 bar |
| Orifices | Optional, available on request |
| Body Material | Zinc plated steel (stainless steel available) |
| Thread Type | NPT |
| Spring Codes | 5 (0.35 bar), 15 (1.00 bar), 30 (2.00 bar), 65 (4.50 bar) |
Tell us what you need and our engineering team will come back to you.
