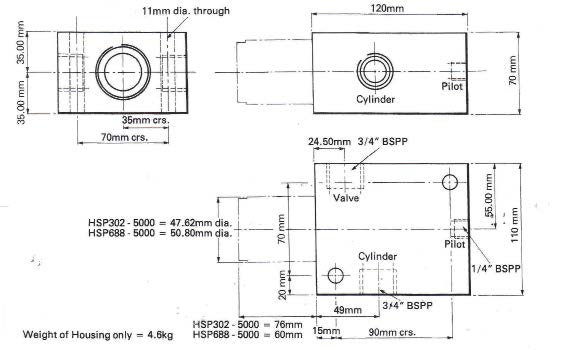

This housing is designed to allow HSP Cartridge Valves to be used in in-line applications.
A recess is machined to match the mounting requirements of HSP standard cartridge valves.
Threaded ports are provided for pressure and return line connections, with a separate pilot port
that is blanked off when used with a pilot operated check valve.
The housing includes two mounting holes, enabling secure attachment to bulkheads and other surfaces.
| Part Code | Description |
|---|---|
| HSP882 | Housing only |
| HSP883 | Housing & HSP302-5000 |
| HSP884 | Housing & HSP688-5000 |
Tell us what you need and our engineering team will come back to you.
