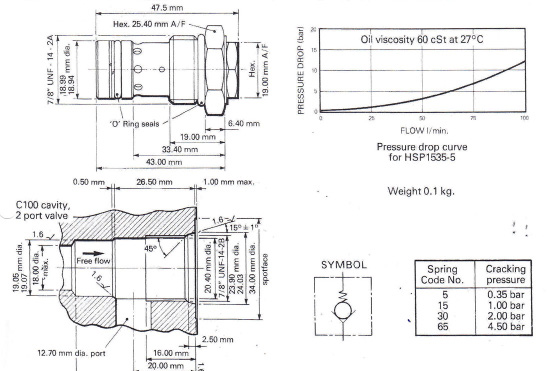

The cartridge ball check valve is designed to hydraulically lock a flow path by preventing
return flow. Installed directly into a cylinder end cap or manifold block, it reduces
pipework and potential leak paths. Flow in one direction is allowed when the ball unseats
against a spring, chosen for a specific cracking pressure. When flow stops, the ball reseats
to block reverse flow, locking the load. The valve’s robust design provides high tolerance
to contamination, making it a reliable component for hydraulic circuits.
| Part Code | Cracking Pressure | Flow Capacity | Cavity |
|---|---|---|---|
| HSP1535-5 | 0.35 bar | 60 l/min | C100 (2-port) |
| HSP1535-15 | 1.00 bar | 60 l/min | C100 (2-port) |
| HSP1535-30 | 2.00 bar | 60 l/min | C100 (2-port) |
| HSP1535-65 | 4.50 bar | 60 l/min | C100 (2-port) |
